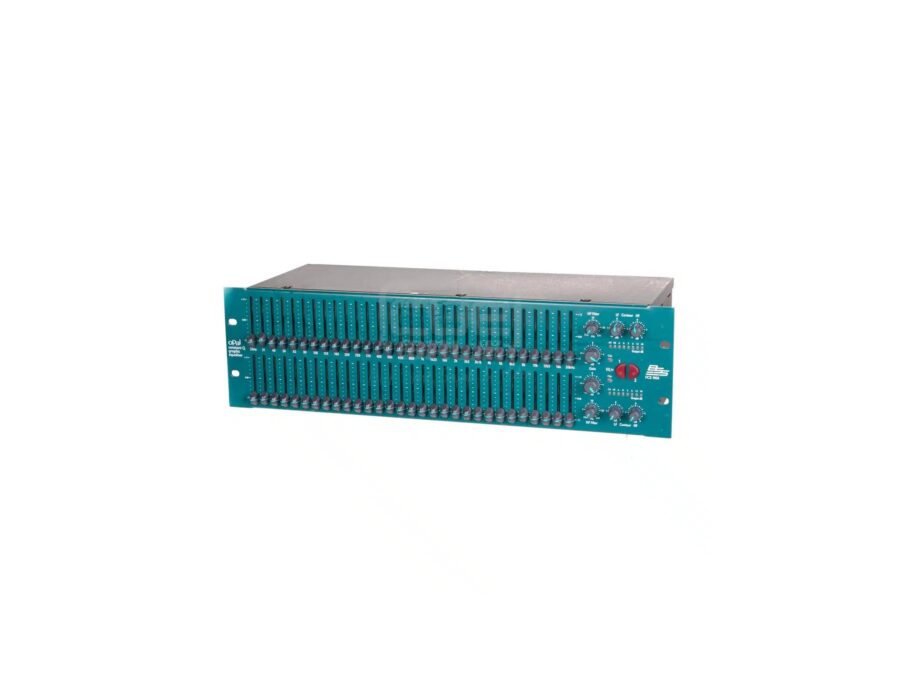

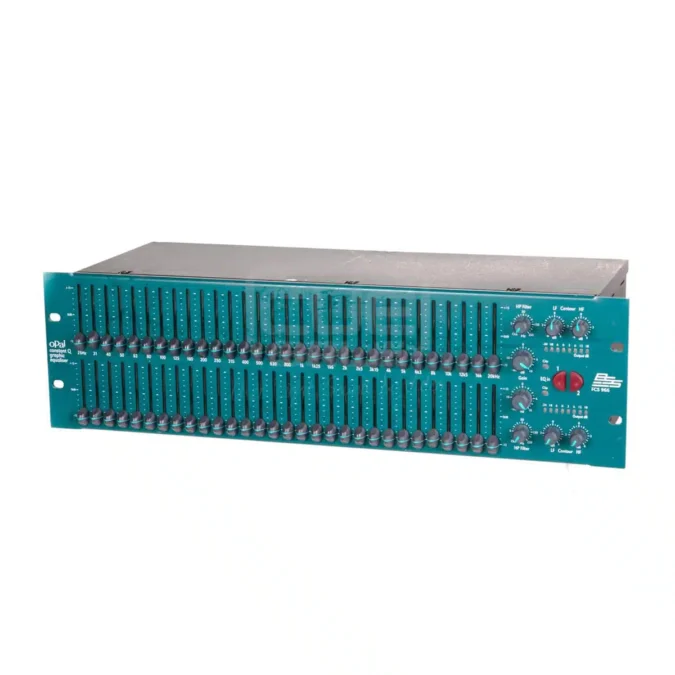

BSS-FCS966

BSS-FCS966

Key Features

  • Filter Type | Constant Q graphic EQ
  • Channels | Dual-channel (2 × 30-band)
  • Rack Size | 3U rack-mount
  • Faders | 45 mm long-throw, centre detent, ±15 dB per band
  • High-Pass Filter | Sweepable, OUT to 250 Hz
  • LF Contour | ±6 dB shelving @ 50 Hz
  • HF Contour | ±6 dB shelving @ 14 kHz
  • Inputs | Electronically balanced XLR, ¼" TRS, Phoenix/Combicon
  • Outputs | Electronically balanced XLR, ¼" TRS, Phoenix/Combicon
  • Bypass | Relay bypass (signal passes on power loss)
  • Metering | 8-segment LED per channel (-24 dBu to +18 dBu)
  • Clip Detection | Triple-point clip indicator
  • Fader Bypass | Individual band bypass at centre detent
  • Overall Gain | -∞ to +10 dB

Product Overview

The BSS 966FCS is a professional dual-channel graphic equaliser designed for live sound reinforcement, touring and installed audio systems. It provides precise frequency shaping and feedback control for Front of House and monitor mixes, helping optimise system performance in challenging acoustic environments.

The unit features two independent 31-band graphic EQ channels, each with ±15 dB of gain control per band. Balanced input and output connections using XLR connectors allow straightforward integration into professional analogue signal chains. The 966FCS also includes a switchable high-pass filter and signal present LEDs to support accurate system setup and monitoring.

Housed in a 1U rack-mount chassis, the 966FCS combines robust build quality with reliable operation, making it suitable for touring racks, fixed installations and rental fleet use where flexible, high-resolution equalisation is required.

Specifications

Condition
New
Input Impedance
10 kOhm, electronically balanced
Maximum Input Level
> +20 dBu
CMRR
> -40 dB @ 1 kHz
Output Impedance
< 50 Ohms, electronically balanced
Maximum Output Level
> +20 dBu into 600 Ohms
Frequency Response
5 Hz – 45 kHz ±1 dB
Noise
< -94 dBu (22 Hz – 22 kHz)
Dynamic Range
> 115 dB
Crosstalk
> -80 dB @ 1 kHz
Distortion
< 0.005% THD (20 Hz – 20 kHz, 80 kHz BW)
Gain Control
+10 dB to -∞
EQ Bands
30 bands per channel (total 60) on ISO centres
EQ Filter Type
Constant Q (Q = 4)
EQ Range
±15 dB
High-Pass Filter
Off to 250 Hz, 12 dB/octave
LF Contour
±6 dB shelving @ 50 Hz, 6 dB/octave
HF Contour
±6 dB shelving @ 14 kHz, 6 dB/octave
Dimensions
19" × 5.25" × 7.1" (483 × 134 × 180 mm) — 3U Rack Space
Weight
6.6 lbs (3 kg), unpacked
Power
115 / 230 V AC, 50 / 60 Hz, 30 VA
