BSS Opal – DPR944

Brand: BSS Condition: New

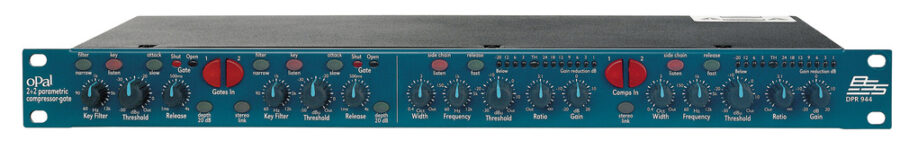

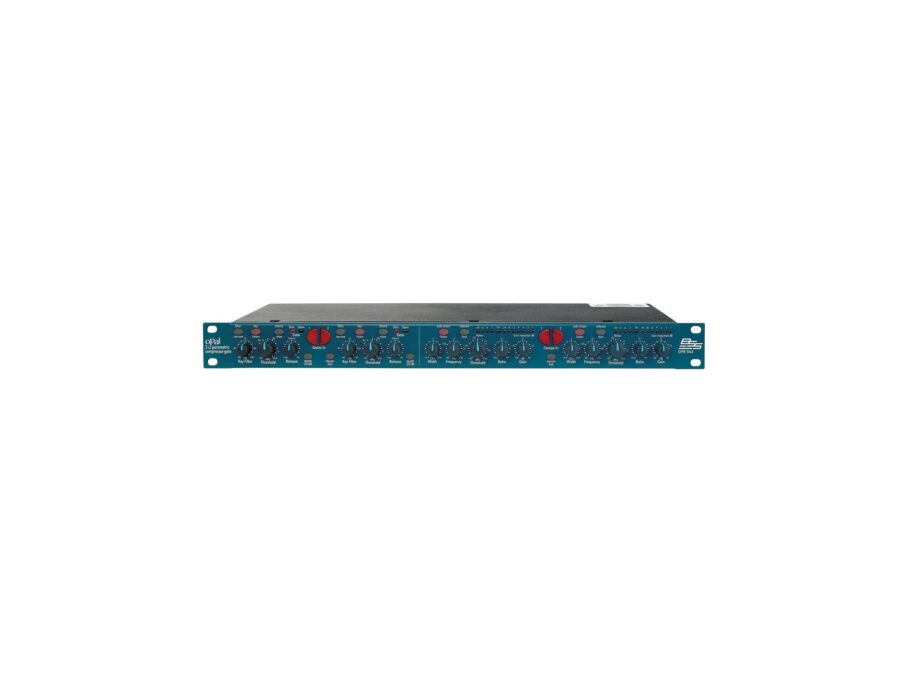

BSS Opal – DPR944

Key Features

  • Channels | 2 (dual-channel)
  • Inputs | Balanced XLR
  • Outputs | Balanced XLR
  • Side-Chain | Balanced insert points
  • Operating Level | Switchable +4 dBu / -10 dBV
  • Frequency Response | 10 Hz – 80 kHz (±3 dB)
  • Dynamic Range | >117 dB
  • Noise | -96 dBu
  • THD | <0.005% (typical)
  • Compressor | Variable threshold, ratio, attack, release (auto mode available)
  • De-Esser | Broadband and frequency-selective (1 kHz – 10 kHz)
  • Metering | Dual LED bargraphs (signal level & gain reduction)
  • Rack Size | 1U

Specifications

Brand
BSS
Condition
New
Input Impedance
10k ohm balanced or unbalanced
Input Headroom
> +20 dBu
Input CMRR
> -50 dB (30 Hz – 20 kHz)
Output Level
> +20 dBu into 600 ohms or greater
Output Impedance
< 50 ohms balanced or unbalanced
Output Gain
±20 dB continuously variable
Frequency Response
10 Hz – 80 kHz (±3 dB)
Noise
-96 dBu (22 Hz – 22 kHz)
Dynamic Range
> 117 dB
Crosstalk
> -85 dB (20 Hz – 20 kHz)
Distortion
< 0.005% THD (80 kHz BW)
Threshold Range
-30 dBu to +20 dBu
Compression Ratio
1:1 to 20:1 (progressive)
Attack Time
50 µs to 80 ms
Release Time
5 ms to 5 s (or Auto)
Peak Limiter Threshold
0 dBu to +20 dBu
De-esser Range
Off to Max
Connectors
XLR (Balanced)
Power Requirement
100-120V / 220-240V AC, 50/60 Hz
Dimensions
483 mm × 44 mm × 282 mm (1U Rack)
Weight
Approx. 4.5 kg
