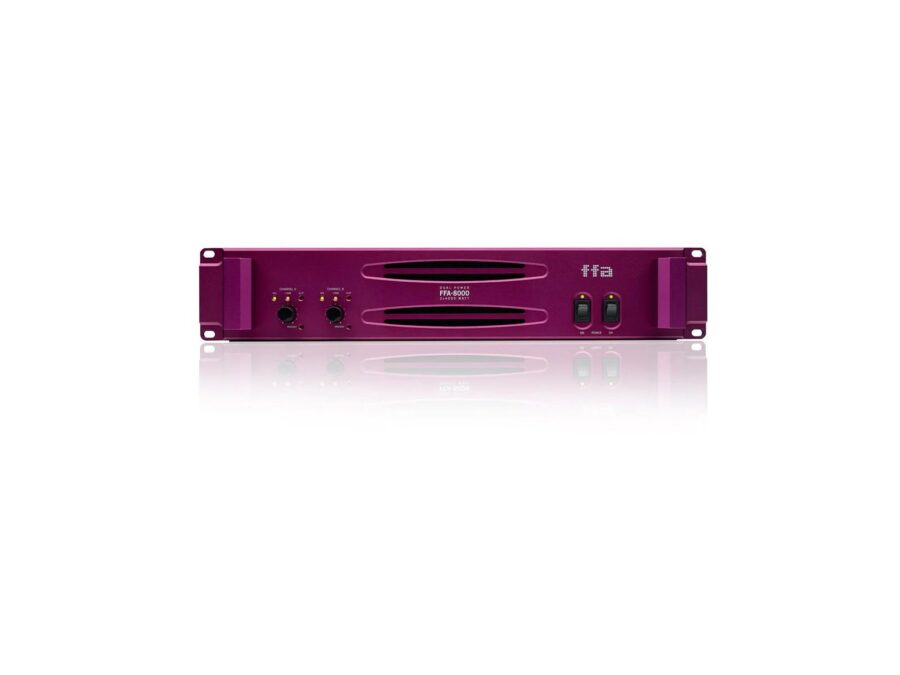

FFA – 8,000 – Class D Power Amplifier

Key Features

  • 2 x 4000 Watts at 2 Ohms
  • FFA Class D PWM amplifiers
  • Power supply soft start
  • High thermal headroom
  • Weight - 12kg
  • Dual mono power amplifiers
  • Clip limiter
  • Hand constructed and designed in England

Product Overview

The FFA 8000 is a four-channel professional power amplifier engineered for high-output sound reinforcement and installation use. Designed to deliver clean, controlled power with substantial headroom, it is well suited to driving demanding loudspeaker systems in live, touring and fixed environments.

The amplifier is equipped with four balanced XLR inputs for secure, low-noise signal connection and four Speakon outputs, allowing flexible routing and straightforward integration into multi-channel system designs. Built for sustained operation under heavy load, the FFA 8000 offers stable performance, low distortion and comprehensive protection circuitry to ensure reliability in critical audio applications.

Specifications

Condition
New
Power Ratings
FFA - 8000 - 8 Ohms 1250W, 4 Ohms 2400W, 2 Ohms 4000W
Gain
32 dB
THD
Typical 0.05 4 Ohm 1kHz THD+N
Frequency Response
20Hz - 20kHz
Controls
Power on rocker switch each channel. 40 point Potentiometer each channel
Indicators
Power ‘on’ green LED each channel, Signal present green LED, -3dB drive yellow LED, amplifier clip - red signal LED, amplifier protect due to over temp/clip limiter activated and 3 second mute at power up = red LED
Cooling
Rear to front airflow, high CFM fan
Load Protection
DC on output, side chain TCA clip limiter circuit
Amplifier Protection
Short circuit, current overload, thermal, reactive load stability

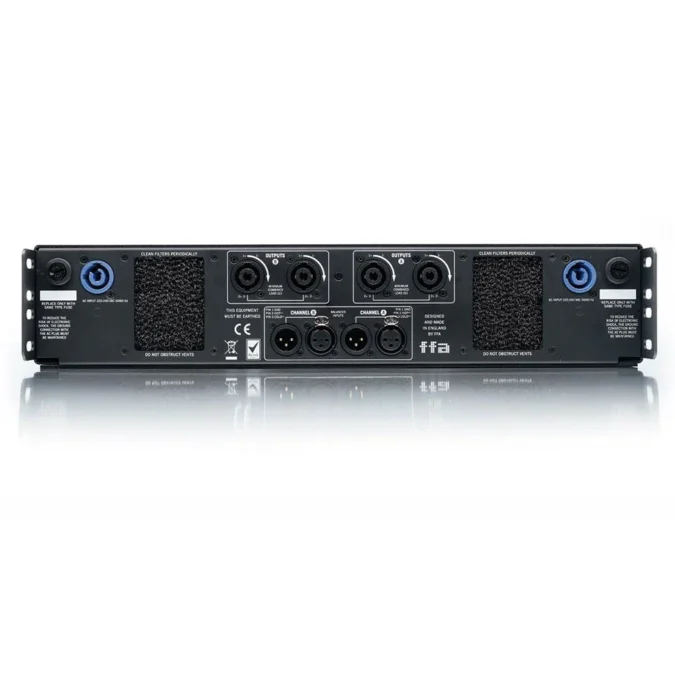

Audio Inputs
Neutrik® female XLR with male XLR signal link through per channel
Audio Outputs
Pair of Neutrik® NL4MP-UC speakON® connectors per channel. Each connector has all output poles live 1+, 1-, 2+, 2-. This allows the use of 4 core loudspeaker cable to minimise conductor losses between amplifier and loudspeaker
Power Supply
2 x 20A Neutrik® powerCON® required – one each channel
Power Requirement
185-230 VAC 50-60Hz, 2x16A max per amplifier, 120V (configured at factory)
Dimensions
2RU 19” rack mount enclosure, H88mm x W483mm x D510mm. Depth includes integral rear rack support ears
