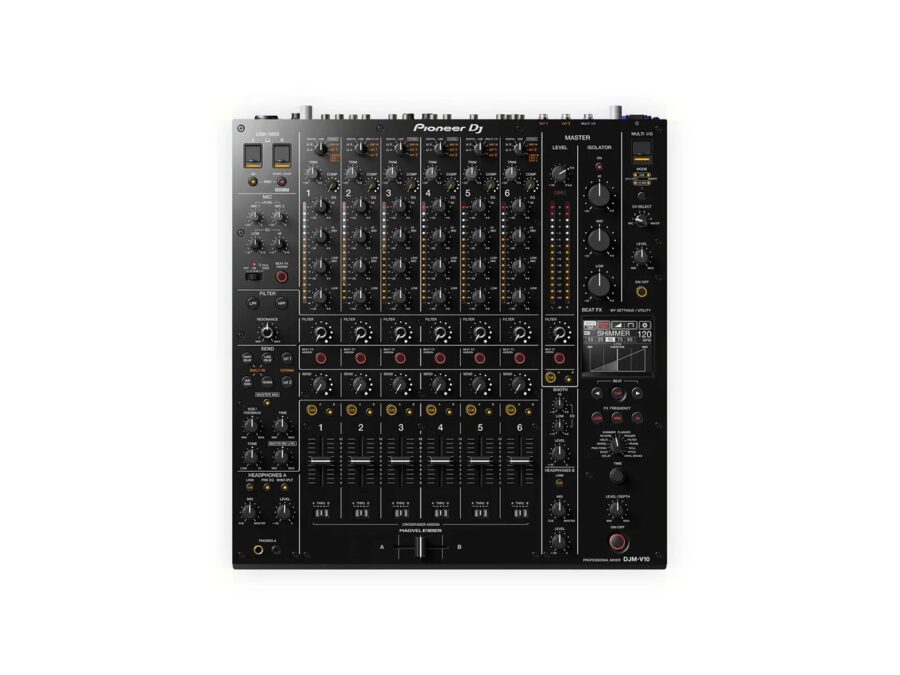

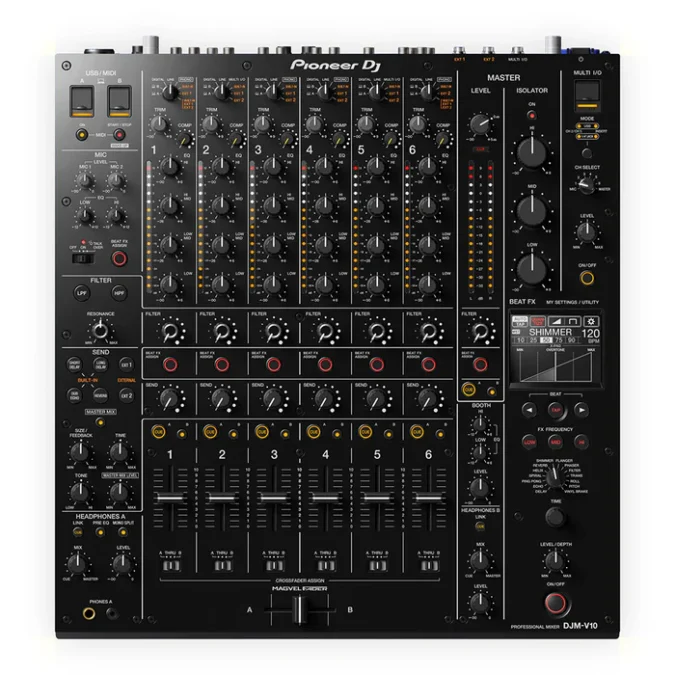

Pioneer DJM-v10

Key Features

  • Channel Count | Six fully independent mixer channels
  • Sound Quality | High-resolution 96 kHz digital processing
  • Channel EQ | 4-band EQ per channel
  • Filters | Dedicated high-pass and low-pass filters per channel
  • Built-In Effects | Beat FX and Sound Colour FX
  • Send / Return | External effects loop support
  • Dual USB | Seamless DJ changeovers and back-to-back sets
  • Mic Section | Dual mic inputs with dedicated EQ and controls
  • Monitoring | Advanced cue and booth monitoring
  • Build Quality | Club-standard construction for professional use

Product Overview

The Pioneer DJM-V10 is a six-channel professional DJ mixer engineered for high-end live performance, club and broadcast applications. It delivers exceptional sound quality and flexible routing in a robust format designed for demanding environments.

Connectivity is comprehensive, with six independent channels featuring phono (RCA) and line (RCA) inputs on each channel. For external devices and processors, it provides three sets of balanced XLR master outputs, two sets of booth outputs (¼″ TRS), and record outputs (RCA). A combo XLR/¼″ mic input with dedicated controls is included for live announcements or vocals, and headphone cueing is supported via ¼″ and ⅛″ outputs.

The DJM-V10 also incorporates extensive built-in effects including Beat FX and Sound Colour FX, individual channel filtering and routing flexibility, making it suitable for complex performance setups. With high-resolution audio processing, smooth control surfaces and professional-grade outputs, the DJM-V10 is well suited to clubs, touring rigs, professional DJs and broadcast environments where reliability and sound quality are paramount.

Specifications

Condition
New
Channels
6
USB Audio
Dual USB Type-B, 24-bit / 96 kHz
Frequency Response
20 Hz – 40 kHz
S/N Ratio
105 dB or better
THD+N
< 0.005%
Line Inputs
6 x RCA
Phono Inputs
4 x RCA
Digital Inputs
6 x Coaxial (AES/EBU supported)
Mic Inputs
2 x XLR / ¼" Combo
Return
3 x ¼" TRS Jack
Master Outputs
Balanced XLR, RCA
Booth Outputs
2 x ¼" TRS
Record Output
RCA
Send
3 x ¼" TRS Jack
Headphone Outputs
2 x ¼" Jack, 2 x ⅛" Mini-jack (Independent monitoring)
EQ
4-band per channel (High, Hi-Mid, Low-Mid, Low)
Compressor
Dedicated knob per channel
Filter
Dedicated per channel (LPF/HPF)
Master Isolate
3-band Master EQ
Effects
Built-in Send/Return FX + Beat FX
Power
AC 220–240 V, 50 / 60 Hz
Dimensions (W×H×D)
Approx. 437 × 107 × 467 mm
Weight
Approx. 11.9 kg
