RC1 Leveliza

RC1 Leveliza

Key Features

  • Function | Transparent audio levelling
  • Channels | Dual-channel (2 independent channels)
  • Dynamics | Preserves natural dynamic range
  • Signal Analysis | Analyses dominant loudness components over time
  • Fast Response | Rapid reaction to sudden level increases
  • System Protection | Prevents distortion and protects sound systems
  • Operation Type | Level control without compression or limiting

Product Overview

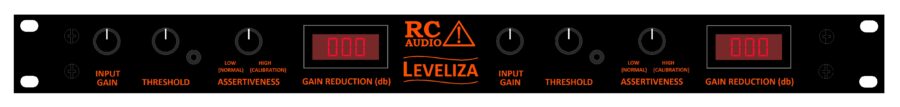

The RC1 Leveliza is a dual-channel audio levelling processor designed to keep sound levels consistent while preserving the natural dynamics of music. Rather than compressing or limiting the signal, it transparently controls average loudness, helping to protect sound systems and prevent distortion caused by sudden level increases.

The unit continuously analyses the audio signal and reacts quickly to unexpected peaks, making it suitable for venues and live sound systems where reliable level control is required. It features balanced XLR inputs and outputs for both channels and is housed in a 1U, 19-inch rack-mount enclosure approximately 250 mm deep. Power is supplied via a standard IEC C14 inlet, operating on 90–264 V AC at 47–63 Hz.

The RC1 Leveliza is commonly used as a system safeguard, maintaining stable output levels without audibly affecting sound quality.

Specifications

Condition
New
Rack Format
1U 19-inch rack unit, 250 mm deep
Inputs / Outputs
Balanced XLR
Power
90–264 V AC, 47–63 Hz, IEC C14 inlet
Maximum Input Level
Up to 20 V RMS (balanced)
Metering
LED gain reduction display
Controls
Dedicated threshold and input attenuation per channel
Frequency Response
20 Hz – 20 kHz (+/- 0.5 dB)
Distortion (THD)
< 0.01% at any level of reduction
Dynamic Range
> 105 dB
Gain Reduction Method
High-quality VCA (Voltage Controlled Amplifier)
Noise Floor
< -90 dBu
Tamper Protection
Recessed controls to prevent unauthorized adjustment
Mute Interface
Connection for external fire alarm or "Sentry" system
Remote Control Port
For connection to Formula Sound RC1 remote volume control
Auxiliary Outputs
For driving external "Red Alert" warning displays
Construction
Robust steel chassis with black powder-coat finish
Action
Smooth, non-clipping gain reduction
Threshold Adjustment
Multi-turn potentiometer for precision setting
Indicators
Power LED, Limit/Activity LED, and Gain Reduction bar graph
