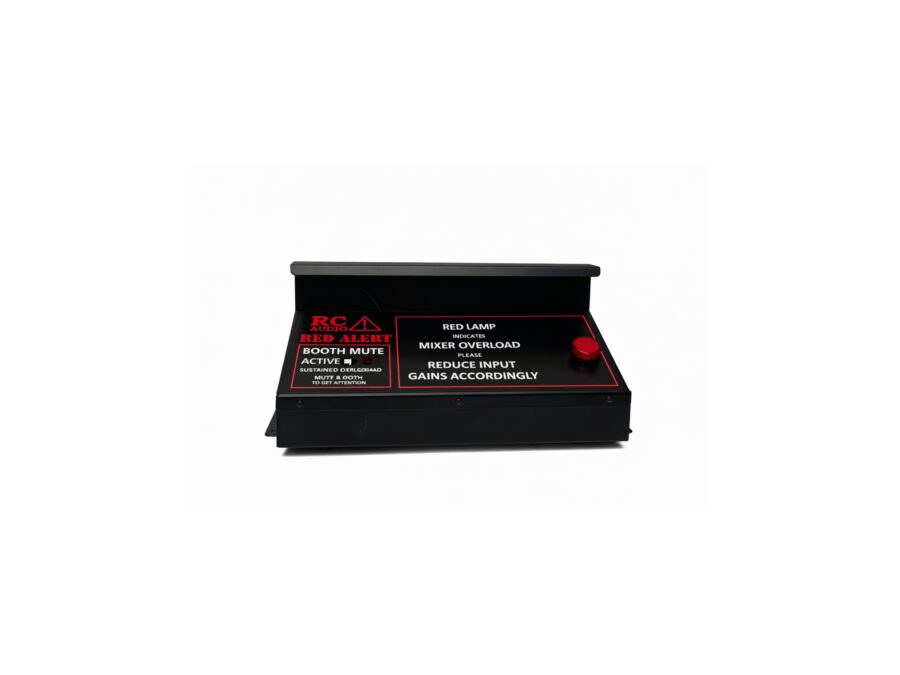

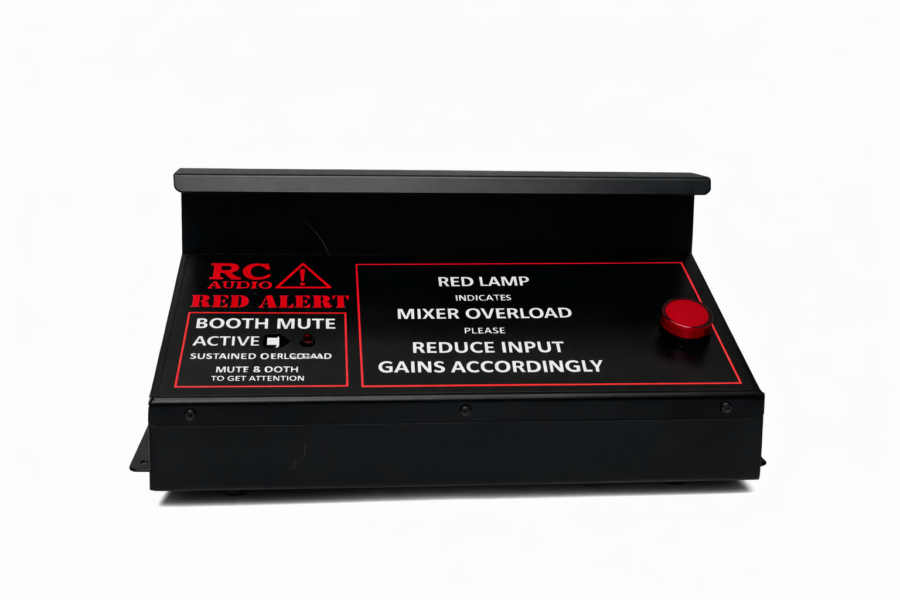

RC1 Red Alert

Product Overview

The RC1 Red Alert is a compact audio level monitoring and protection device designed for use in venues and live sound systems. It continuously monitors audio levels and provides a clear visual warning when signal levels become excessive.

If preset limits are exceeded, the RC1 can automatically mute or reduce audio output to protect sound systems and help maintain compliance with noise regulations. A key-operated override allows authorised control, while a relay output can trigger external warning or control systems.

The RC1 Red Alert is commonly used as a safeguard against system overload, unauthorised level changes and excessive sound levels in professional audio environments.

Specifications

Condition
New
Product
Red Alert (Visual Indicator Unit)
Compatibility
Formula Sound Sentry, AVC2, or CX4/CX5 mixers
Indicators
Tri-color LED display (Green / Amber / Red)
Display Function (Green)
Normal operating level (Safe)
Display Function (Amber)
Approaching threshold (Warning)
Display Function (Red)
Threshold exceeded (Limit active/Mute imminent)
Connection Type
3-pin XLR (standard microphone cable)
Power Source
Powered by the master unit (no external PSU required)
Operating Voltage
15–20 V DC (phantom-powered from Sentry/AVC2)
Cable Distance
Up to 50 meters (using standard screened cable)
Enclosure
Robust metal housing
Mounting
Wall-mounted (surface) or tabletop
Dimensions (W×H×D)
165 mm × 115 mm × 45 mm
Weight
Approx. 0.6 kg
Function
Remote volume adjustment for AVC2
Controls
Single rotary volume potentiometer
Indicators
Dual status LEDs (Power/Active)
Connection
4-core screened cable to AVC2 rear panel
Dimensions
80 mm × 80 mm (standard single-gang plate size)
Mounting
Fits standard UK single-gang backbox
