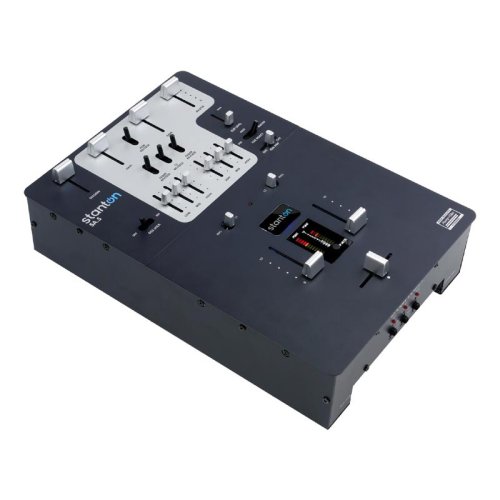

Stanton SA5 Battle Mixer

Key Features

  • 2-Channel Layout | Standard battle mixer configuration
  • Crossfader | Adjustable curve and replaceable fader
  • EQ | 3-band per channel for tonal control
  • Inputs | Switchable phono/line inputs
  • Booth Output | Independent booth output for monitoring
  • Mic Section | Dedicated mic input with level control
  • Headphone Monitoring | Cueing via front headphone output
  • Durable Build | Designed for club/DJ use
  • Simple Operation | Intuitive layout for performance

Product Overview

The Stanton SA5 is a two-channel battle-style DJ mixer designed for scratch DJs, turntablists and compact DJ setups. Its simple, robust layout makes it suitable for live performance, practice environments and small event use.

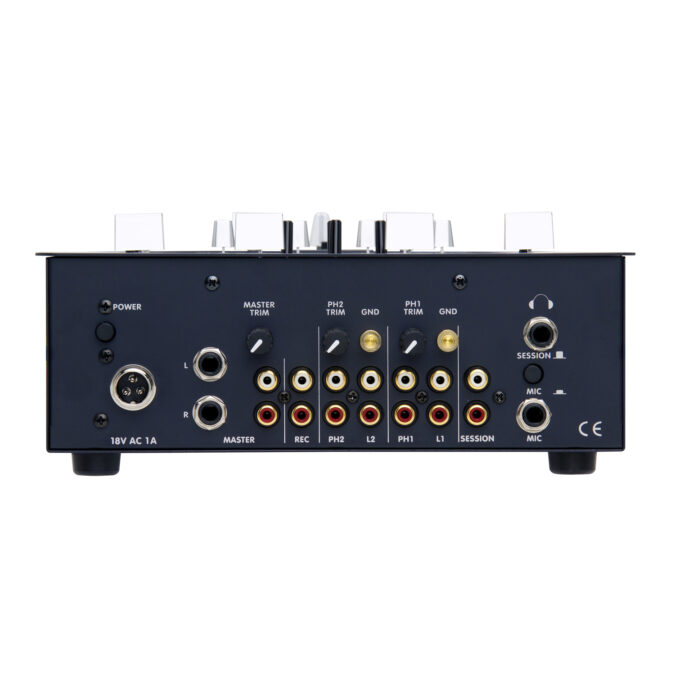

The mixer provides phono (RCA) and line (RCA) inputs on each channel, allowing connection of turntables, CDJs or other line-level sources. Output connections include an RCA master output for connection to PA systems or amplifiers and a ¼″ TRS booth output for independent monitor control. A ¼″ microphone input is included for announcements or MC use, and monitoring is handled via a ¼″ headphone output on the front panel.

At the centre of the SA5 is a replaceable crossfader with adjustable curve, making it well suited to scratching and battle-style mixing. With its compact form factor and straightforward connectivity, the Stanton SA5 is commonly used for DJ practice, hip-hop and scratch performances, and small-scale live setups.

Specifications

Condition
New
Channels
2
Inputs
Phono (RCA), Line (RCA)
Outputs
Master (RCA), Booth (¼″ TRS)
Crossfader
Replaceable, adjustable curve
EQ
3-band per channel (High/Mid/Low)
Frequency Response
20 Hz – 20 kHz ±1.5 dB
S/N Ratio
> 80 dB
THD
< 0.1% (typical)
Mic Input
¼″ jack
Headphone Output
¼″ jack
Power
External PSU (100-240 V AC)
Dimensions (W×H×D)
Approx. 320 × 100 × 260 mm
Weight
Approx. 3.2 kg
