Stage Monitors In Stock

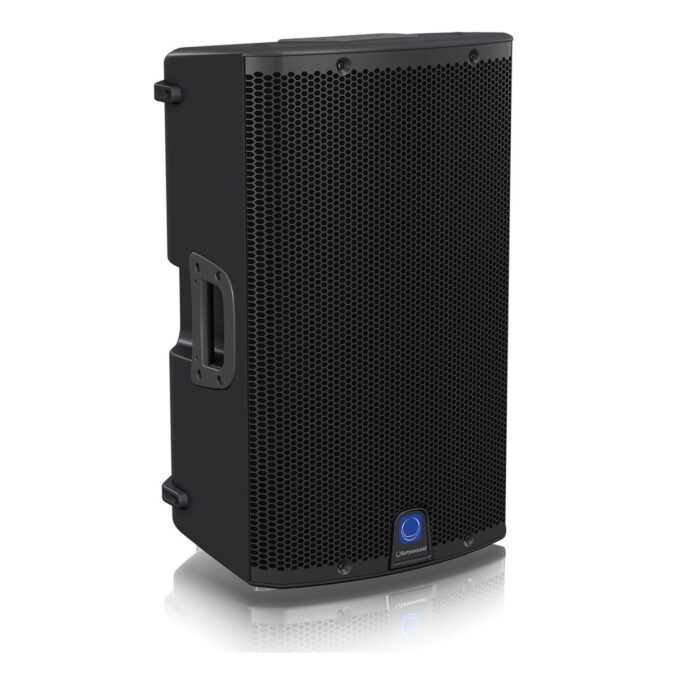

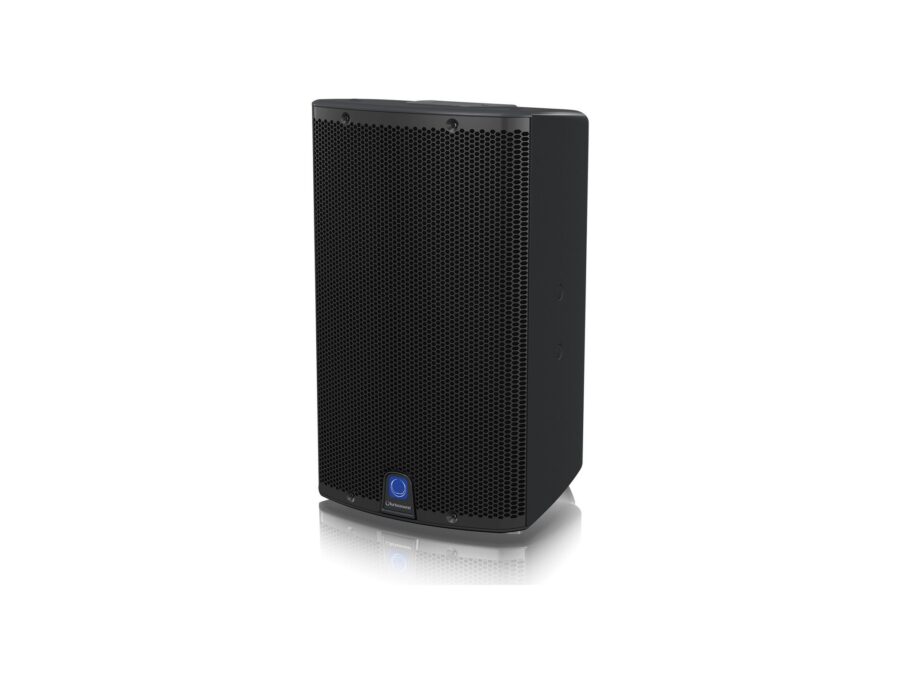

TurboSound IQ15 – Active PA Speaker

Brand: Turbosound Condition: New
TurboSound IQ15 – Active PA Speaker

Key Features

  • 2 way full range loudspeaker for portable PA and installation applications
  • 2,500 Watt power featuring Klark Teknik Class-D technology
  • Klark Teknik Digital Signal Processing for total system control
  • Speaker modelling includes accurate models of industry standard speakers
  • SCC (Spatial Contour Control) compensates frequency response in relation to physical speaker placement
  • ULTRANET digital audio networking connects to mixers and other sources
  • 15" low frequency driver with low mass voice coil for improved transient response
  • High temperature 1" compression driver with copper-clad aluminium voice coil for extended high frequency reproduction
  • Fully featured user interface with LCD display for ease of navigation
  • PC remote control software downloadable at turbosound.com
  • Lightweight fibre glass reinforced composite enclosure
  • Rugged powder coated perforated steel mesh grille
  • Dual angle pole mount for accurate audience coverage
  • Multiple internal rigging points for installation applications
  • Mains input and link output on industry standard twist-lock power connectors

Product Overview

The Turbosound iQ15 is an active, two-way PA loudspeaker designed for professional live sound and portable reinforcement applications. It features a 15-inch low-frequency driver paired with a high-frequency compression driver, delivering high output with clear and controlled sound reproduction across the coverage area.

The iQ15 includes balanced XLR/TRS combination inputs along with balanced XLR link outputs, allowing easy integration into standalone or multi-speaker PA systems. Onboard DSP with an LCD display provides system control and optimisation without the need for external processing.

With built-in amplification and a durable enclosure, the iQ15 is well suited for Front of House (FOH) use, stage monitoring, and general sound reinforcement where a self-powered, flexible loudspeaker solution is required.

Specifications

Brand
Turbosound
Condition
New
Spec System
Turbosound iQ12
Frequency response
52 Hz – 18 kHz ±3 dB / 45 Hz – 20 kHz -10 dB
Nominal dispersion
80° H x 60° V @ -6 dB points
Maximum SPL
130 dB peak
Crossover type
Active
Transducers
1 x 12" LF driver, 1 x 1" HF compression driver
Limiter
Independent HF, LF, peak and rms
Amplifier Maximum output power*
2,500 W
Type
Class-D
Protection
Short circuit, open circuit, thermal
Connectors Input A / B
2 x combo jack/XLR
Sensitivity
Line +4 dBu, mic -22 dBu (switchable)
Input impedance
20 kΩ unbalanced, 40 kΩ balanced
Maximum input level
+21 dBu
Output A / B
2 x XLR Linked to input
Mix output
XLR, balanced
Output impedance
100 Ω unbalanced, 200 Ω balanced
Ultranet input/link
2 x RJ45
Mains Supply
Neutrik powerCON input 20A and link 15A
Controls DSP
Rotary push-encoder; Buttons for Process, Setup, Exit, Enter
Mixer section
2 x gain controls (channels A and B)
User DSP Functions
Positioning, Sound mode, Sound modeling, FBQ
Factory EQ presets
20 total presets (19 user-definable)
Display
LCD 128 x 32, blue backlit
Delay
0 - 300 ms
Equalisation
High/Low shelving EQ, 2 x parametric EQ
Limiter
Zero attack input limiter
Crossover
High Pass L-R 24 dB/oct
Protection
Lock-out function for all settings
Ultranet Digital Network System
16 channels / < 0.9 ms latency
Cabling
Shielded CAT5 (max 75 m)
Power consumption
150 W @ 1/8 max power
Voltage (fuses)
120 V~ / 220-240 V~ (T 10 A H 250 V)
Dimensions HWD
609 x 370 x 370 mm
Net weight
21.1 kg
Construction
Injection-moulded polypropylene
Finish
Black painted
Grille
Powder coated perforated steel
Flying hardware
M10 x 3 points
Accessories
Wall/Ceiling brackets (optional)
