Stage Monitors In Stock

Turbosound TFX122M-AN

Brand: Tubosound Condition: New

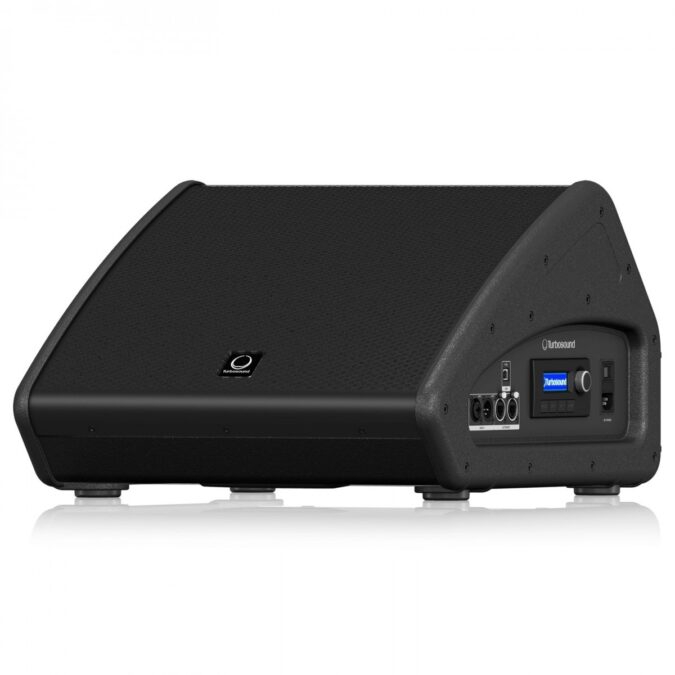

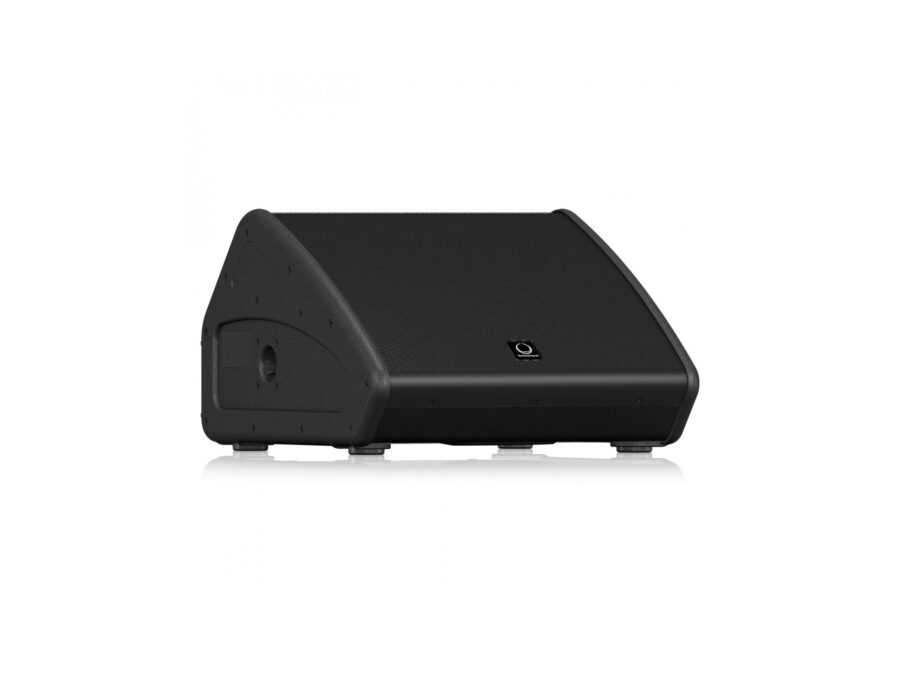

Turbosound TFX122M-AN

Key Features

  • 2 way stage monitor for touring applications
  • 2,500 Watt power featuring Klark Teknik Class-D technology
  • Klark Teknik Digital Signal Processing for total system control
  • ULTRANET digital audio networking connects to mixers and other sources
  • Carbon fibre loaded 12" neodymium motor low frequency driver
  • Titanium dome 1.4" neodymium motor compression driver
  • Low profile design to maximise audience sight lines
  • Low distortion waveguide provides 60° H x 40° V dispersion
  • Fully featured user interface with LCD display for ease of navigation
  • PC remote control software downloadable at turbosound.com
  • 15 mm (5/8") plywood enclosure with fibre glass reinforced composite end cheeks
  • Hard wearing semi matt black paint finish
  • Rugged powder coated perforated steel mesh grille
  • Durable handle for easy lifting and carrying
  • Mains input and link output on industry standard twist-lock power connectors

Product Overview

The Turbosound TFM122M-AN is an active, two-way floor stage monitor designed for professional live sound monitoring applications. It features a 12-inch low-frequency driver paired with a high-frequency compression driver, delivering high output with clear vocal and instrument reproduction on stage.

The monitor incorporates balanced XLR inputs with XLR link outputs, allowing straightforward connection within monitor systems or daisy-chained configurations. Built-in amplification and onboard processing ensure consistent performance and reliable operation without the need for external power amplifiers or controllers.

Housed in a durable, low-profile wedge enclosure, the TFM122M-AN is optimised for use as a floor monitor on live music stages, providing focused coverage and dependable monitoring for performers and engineers alike.

Specifications

Brand
Tubosound
Condition
New
System
Turbosound TFX122M-AN
Frequency Response
75 Hz – 18 kHz ±3 dB / 68 Hz – 20 kHz -10 dB
Nominal Dispersion
60° H x 40° V @ -6 dB points
Maximum SPL
125 dB peak
Crossover type
Active
Transducers
1 x 12" LF driver, 1 x 1" HF compression driver
Limiter
Independent HF, LF, peak and rms
Amplifier Maximum output power*
1,100 W
Type
Class-D
Protection
Short circuit, thermal
Connectors Input / Link
1 x combo jack/XLR, 1 x XLR
Ultranet input/link
2 x RJ45
Mains Supply
Neutrik powerCON 20A
Controls
Rotary push-encoder, Buttons for Process, Setup, Exit, Enter
DSP
Klark Teknik DSP
User DSP Functions
Positioning, Sound mode, FBQ
Factory EQ presets
20 total presets (19 user-definable)
Display
LCD 128 x 32, blue backlit
Delay
0 - 300 ms
Equalisation
High and low shelving EQ, 2 x parametric EQ
Limiter
Zero attack input limiter
Presets
20 total presets (19 user-definable)
Crossover
High Pass L-R 24 dB/oct
Protection
Lock-out function for all settings
Ultranet Digital Network
16 channels
Digital processing
24-bit / 44.1/48 kHz
System Cabling
Shielded CAT5
Power Supply
Switch-mode
Power consumption
140 W @ 1/8 max power
Voltage (fuses)
120 V~ / 220-240 V~ (T 10 A H 250 V)
Enclosure
Wedge design
Dimensions (H x W x D)
302 x 452 x 504 mm
Net weight
14.9 kg (32.8 lbs)
Construction
15 mm (5/8") birch plywood + polypropylene plastic
