Stage Monitors In Stock

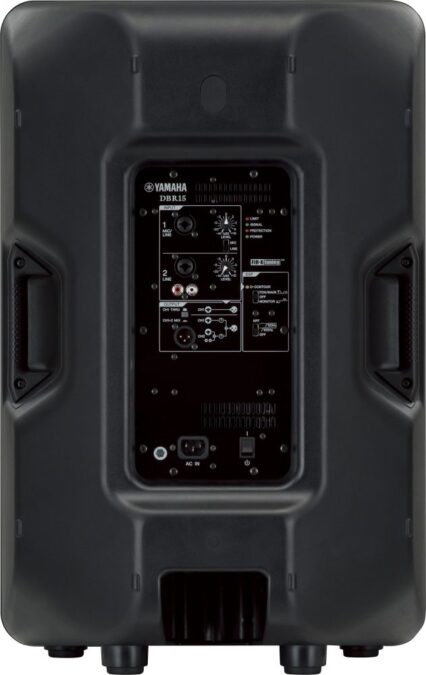

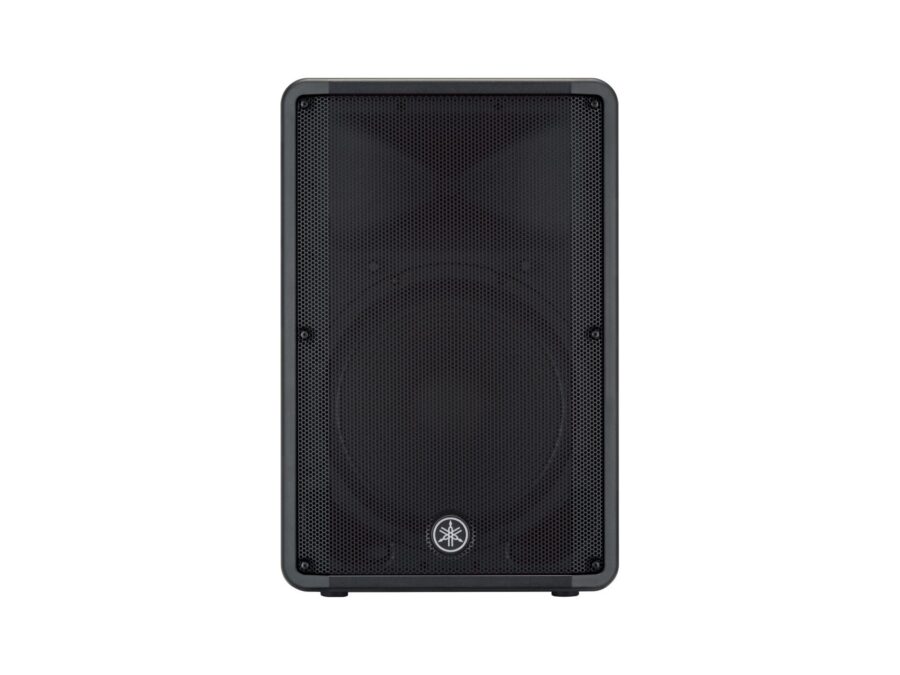

Yamaha DBR15 Active monitor

Brand: Yamaha Condition: New
Yamaha DBR15 Active monitor

Key Features

  • Custom designed transducers and wide-dispersion constant directivity horn
  • DSP Features of DSR-Series
  • FIR-X tuning™ simultaneously optimizes frequency and phase response
  • Multiband dynamic processor for consistent clarity at any output Level
  • Extensive DSP protection functions for maximum output level
  • 2-channel mixer with XLR, TRS Phone and RCA inputs
  • 50°degree wedge angle & symmetrical mirror-mode floor monitoring
  • 3x M8 Rigging Points for standard eye-bolts (Brackets available as an option)
  • Speaker covers available as an option
  • Symmetrical enclosure design for mirror-mode floor monitoring (DBR12 and DBR15)

Product Overview

The Yamaha DBR15 is an active, two-way PA loudspeaker designed for professional sound reinforcement and portable audio applications. It features a 15-inch low-frequency driver paired with a high-frequency compression driver, delivering high output with clear, balanced sound reproduction across a wide coverage area.

The DBR15 includes balanced XLR and ¼” jack inputs, along with balanced XLR link outputs, allowing flexible connection to mixers, microphones and additional loudspeakers. Built-in amplification and DSP ensure consistent performance and reliable operation without the need for external processing.

Housed in a durable enclosure, the DBR15 can be deployed as a Front of House (FOH) loudspeaker or used as a floor monitor, making it a versatile solution for live events, corporate use and general sound reinforcement.

Specifications

Brand
Yamaha
Condition
New
Specification
DBR15
Speaker Type
2-way Active Powered Speaker
Frequency Range (-10 dB)
50 Hz – 20 kHz
Max SPL (1 m)
132 dB
Coverage (H x V)
90° x 60°
LF Driver
15 in cone
HF Driver
1.4 in compression driver
Amplifier Power (Dynamic)
1000 W
Crossover Frequency
2.1 kHz
Inputs
2x Combo (XLR/TRS), 2x RCA
Output
XLR Thru / Mix
DSP
D-CONTOUR
Power Requirement
100–240 V AC 50/60 Hz
Mounting
Pole mount / Fly points (M8)
Dimensions (mm)
455 x 700 x 378
Weight
19.3 kg
