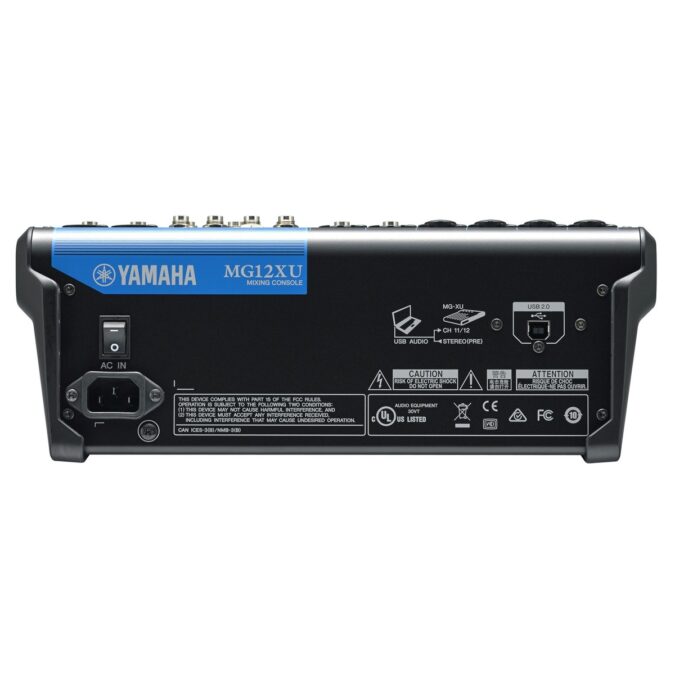

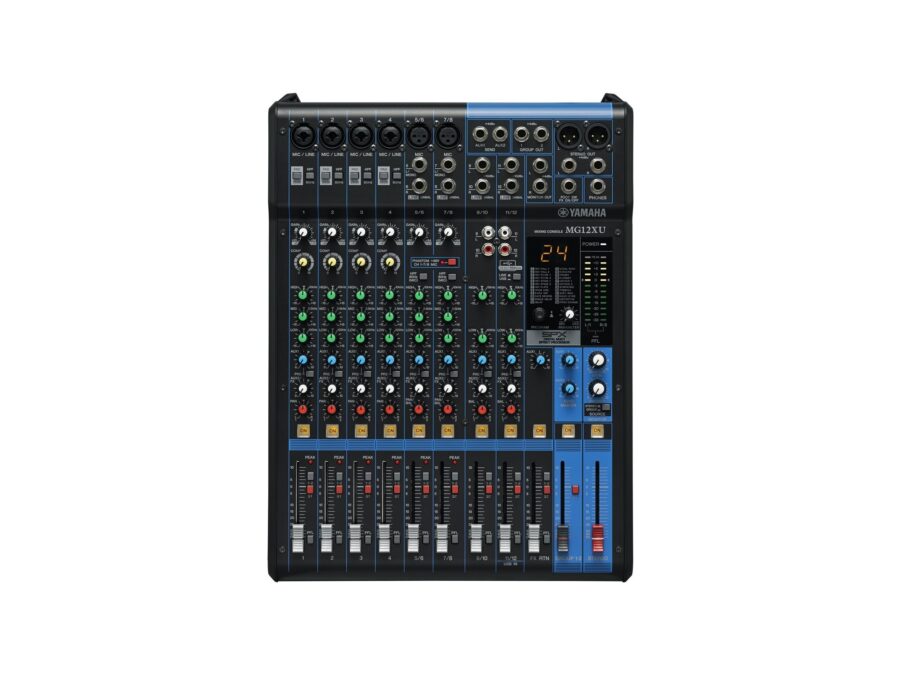

Yamaha MG12XU

Brand: Yamaha Condition: New
Yamaha MG12XU

Key Features

  • 12-Channel Mixing Console
  • Max. 6 Mic / 12 Line Inputs (4 mono + 4 stereo)
  • 2 GROUP Buses + 1 Stereo Bus
  • 2 AUX (incl. FX)
  • “D-PRE” mic preamps with an inverted Darlington circuit
  • 1-Knob compressors
  • High-grade effects: SPX with 24 programs
  • 24-bit / 192kHz 2in / 2out USB Audio functions
  • Works with the iPad (2 or later) through the Apple iPad Camera Connection Kit / Lightning to USB Camera Adapter
  • Includes Cubase AI DAW software download version
  • PAD switch on mono inputs
  • Plus - 48V phantom power
  • XLR balanced outputs
  • Internal universal power supply for world-wide use
  • Optional Rack Mount Kit RK-MG12 Available
  • Metal chassis
  • Dimensions(W×H×D): 308 mm x 118 mm x 422 mm (12.1" x4.6" x16.6")
  • Net Weight: 4.2 kg (9.3 lbs.)

Product Overview

The Yamaha MG12XU is a 12-channel analogue mixing console designed for live sound, recording and general audio production applications. It provides a versatile input configuration, making it suitable for small to mid-scale events, bands, corporate use and installed systems.

The mixer features four mono microphone/line inputs with high-quality preamps and four stereo line input channels, offering flexible connectivity for microphones, instruments and playback devices. Balanced XLR main outputs and ¼” jack outputs allow straightforward connection to PA systems, monitors or recording equipment.

Integrated digital effects and USB audio connectivity enable simple recording and playback integration with computers, while the compact, robust design ensures reliable performance in both portable and fixed-installation environments.

Specifications

Brand
Yamaha
Condition
New
Mono (Mic/Line)
4
Mono/Stereo (Mic/Line)
2
Stereo (Line)
2
Stereo Out
2
Monitor Out
1
Phones
1
AUX Send
2
Group Out
2
Bus
Stereo: 1, Group: 2, AUX[Including FX]: 2
PAD
26 dB (Mono)
HPF
80Hz, 12dB/oct (Mono)
1-Knob Compressor Threshold
+22dBu to -8dBu
Ratio
1:1 to 4:1
Output Level
0 dB to 7 dB
Attack Time
Approx 25 msec
Release Time
Approx 300 msec
EQ High
(Mono) Gain: +15dB/-15dB, Frequency: 10kHz Shelving
EQ Mid
Gain: +15dB/-15dB, Frequency: 2.5kHz Peaking
EQ Low
(Mono) Gain: +15dB/-15dB, Frequency: 100Hz Shelving
Peak LED
LED Turns On When Post EQ Signal Reaches 3dB Below Clipping
Level Metre
2 x 12 -Segment LED Metre (Peak, +10, +6, 0, -6, -10, -20, -25, -30dB)
Total Harmonic Distortion
0.03% @ +14dBu, Gain Knob: Min, 0.005% @ +24dBu, Gain Knob: Min
Frequency Response
+0.5dB/-1.5dB, Refer To Nominal Output Level
Equivalent Input Noise
-128 dBu (Mono Input Channel, Rs: 150Ω, Gain Knob: Max)
Residual Output Noise
-102 dBu (Stereo Out, Stereo Level Knob: Min)
